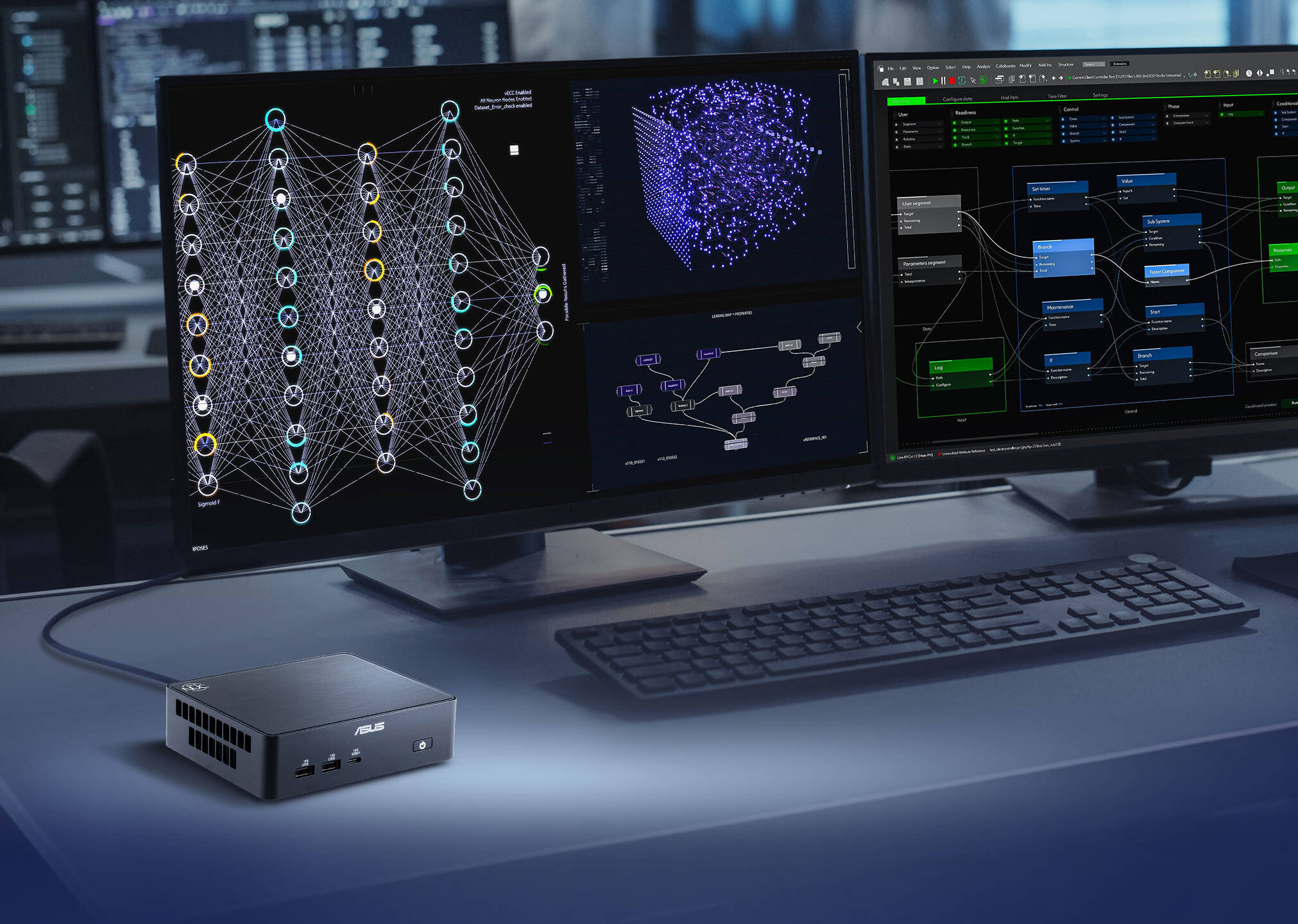

ASUS NUC 16 Pro Mini PC System Image © ASUSASUS NUC 16 Pro Mini PC System (Image © ASUS)

Computing power and efficiency

Intel Core Ultra Series 3 processors are at the heart of the hardware, with the top models featuring the Ultra 9. The integrated LPDDR5x memory increases the overall speed and at the same time contributes to a significant reduction in power consumption - by 50% compared to previous NUC generations. In terms of graphics processing, the device offers a 1.5x increase in 3D graphics performance, supported by Intel Arc B390 GPUs in certain configurations.

AI integration and data protection

To handle complex AI tasks, the NUC 16 Pro utilizes an NPU with a performance of 50 TOPS, reaching up to 180 Platform TOPS. This capacity enables efficient real-time inference and machine learning directly at the edge. In addition, ASUS has introduced the AI SuperBuild software, which enables the local execution of large language models (LLMs). As no cloud connection is required, the system ensures that sensitive data remains on the device - ideal for industries with strict data protection requirements such as healthcare and the financial sector.

Connectivity and interface standards

Designed for professional network environments, the device has two 2.5G LAN ports to ensure network redundancy. The WLAN capabilities have been upgraded to Intel WiFi 7 and Bluetooth 6.0 to minimize latency. I/O is extensive and includes two Thunderbolt 4 ports and five USB 3.2 Gen2 10G ports spread across the front and rear. For display output, the system offers two HDMI 2.1 ports, with an optional DisplayPort configuration also available.

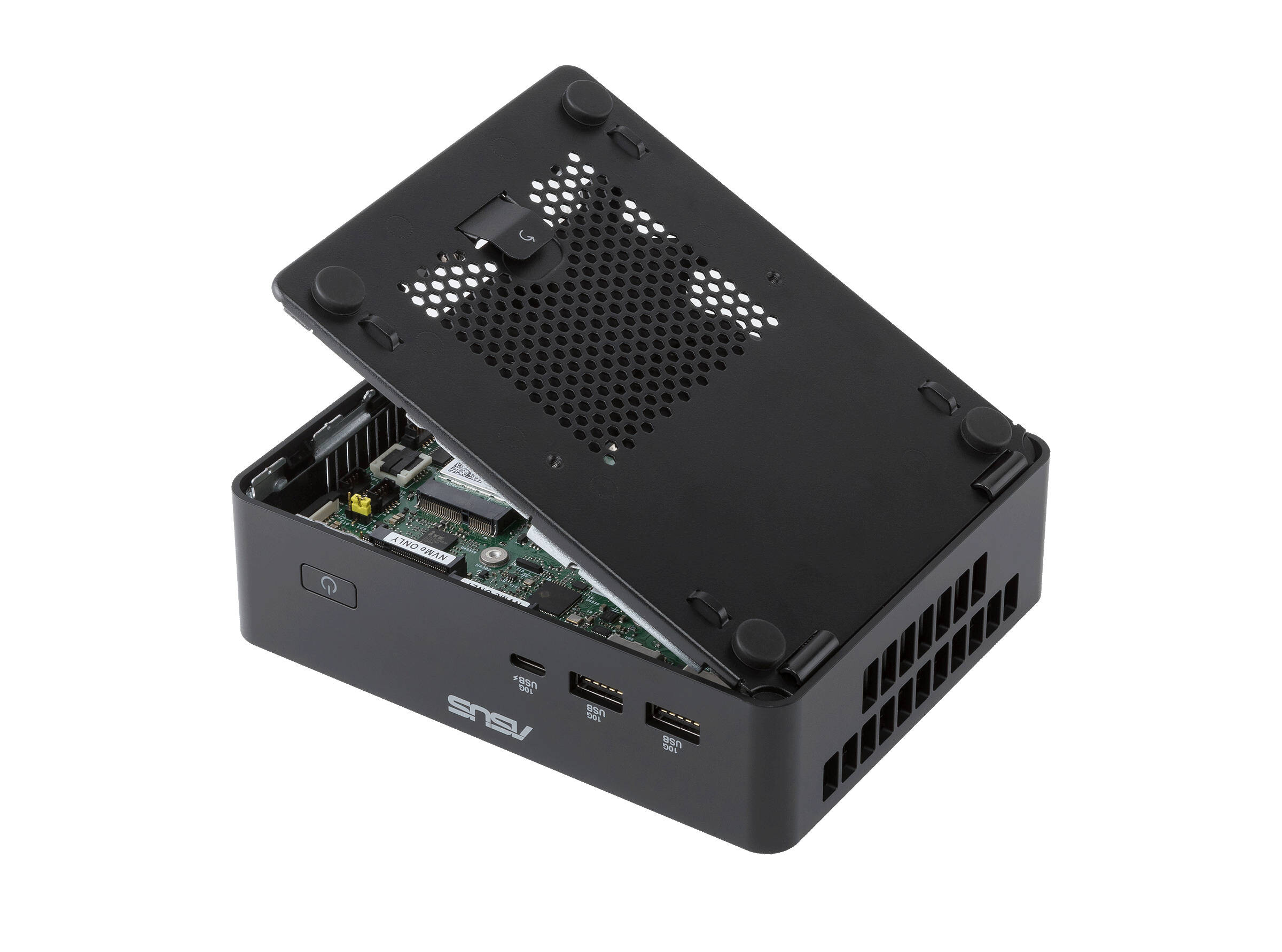

ASUS NUC 16 Pro Mini PC offenASUS NUC 16 Pro Mini PC offen (Image © ASUS)

Thermal management and housing design

To manage heat build-up within the 0.7-liter chassis, ASUS has implemented a cooling solution consisting of two fans with dual exhaust ducts, three heat pipes and flanking cooling fins. This design is intended to ensure constant performance under load while reducing noise. The physical design follows the “Tool-less Chassis 2.0” standard, which simplifies access to and upgrading of the two M.2 SSD slots.

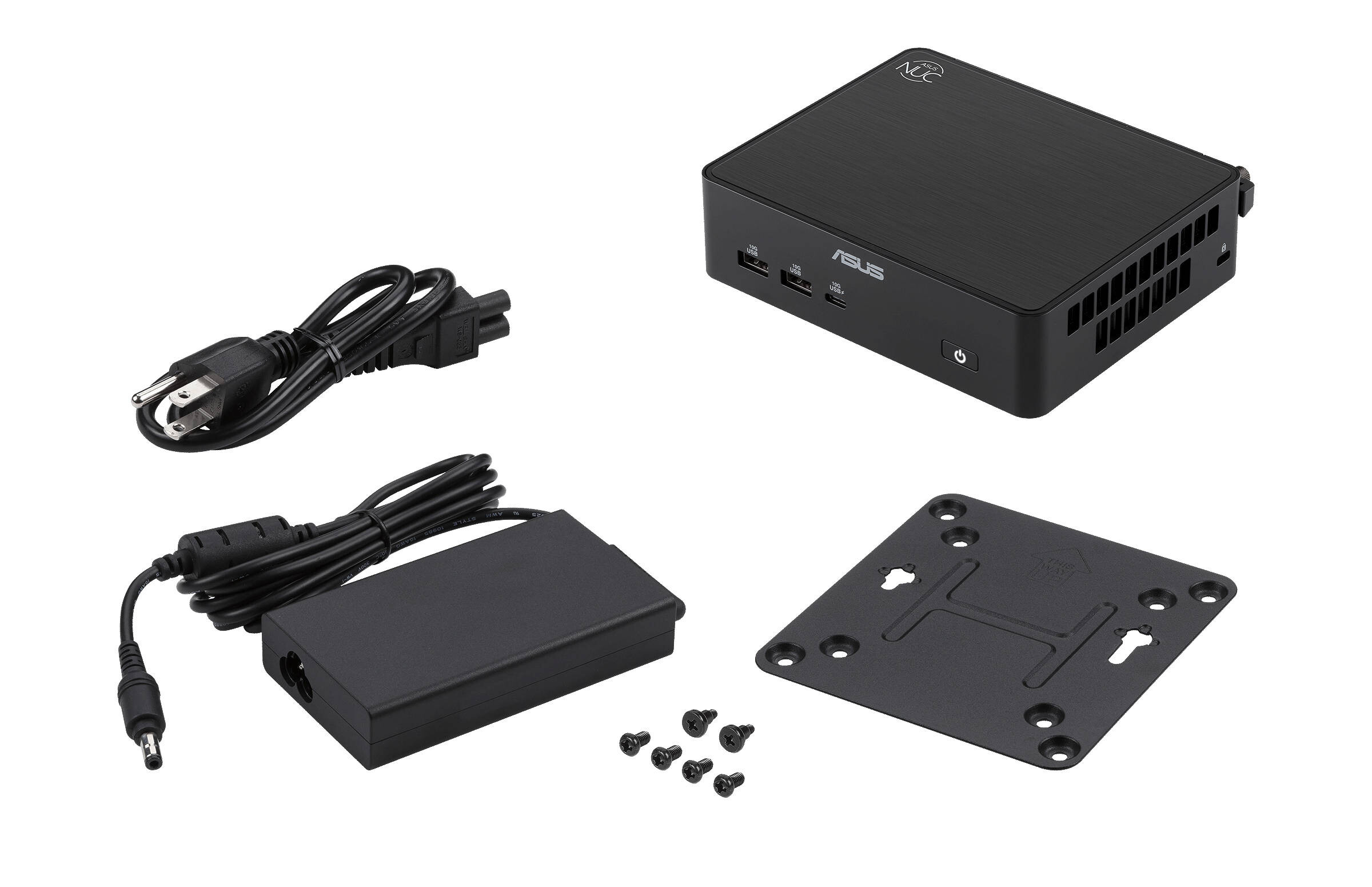

ASUS NUC 16 Pro Mini PC LieferumfangASUS NUC 16 Pro Mini PC Lieferumfang (Image © ASUS)

For industrial and enterprise use, the NUC 16 Pro features fTPM 2.0 for hardware-based security and supports Zero Trust architectures. The chassis has been tested to MIL-STD-810H to verify its resilience in harsh operating environments and ensure that the device can maintain continuous operation with minimal downtime.

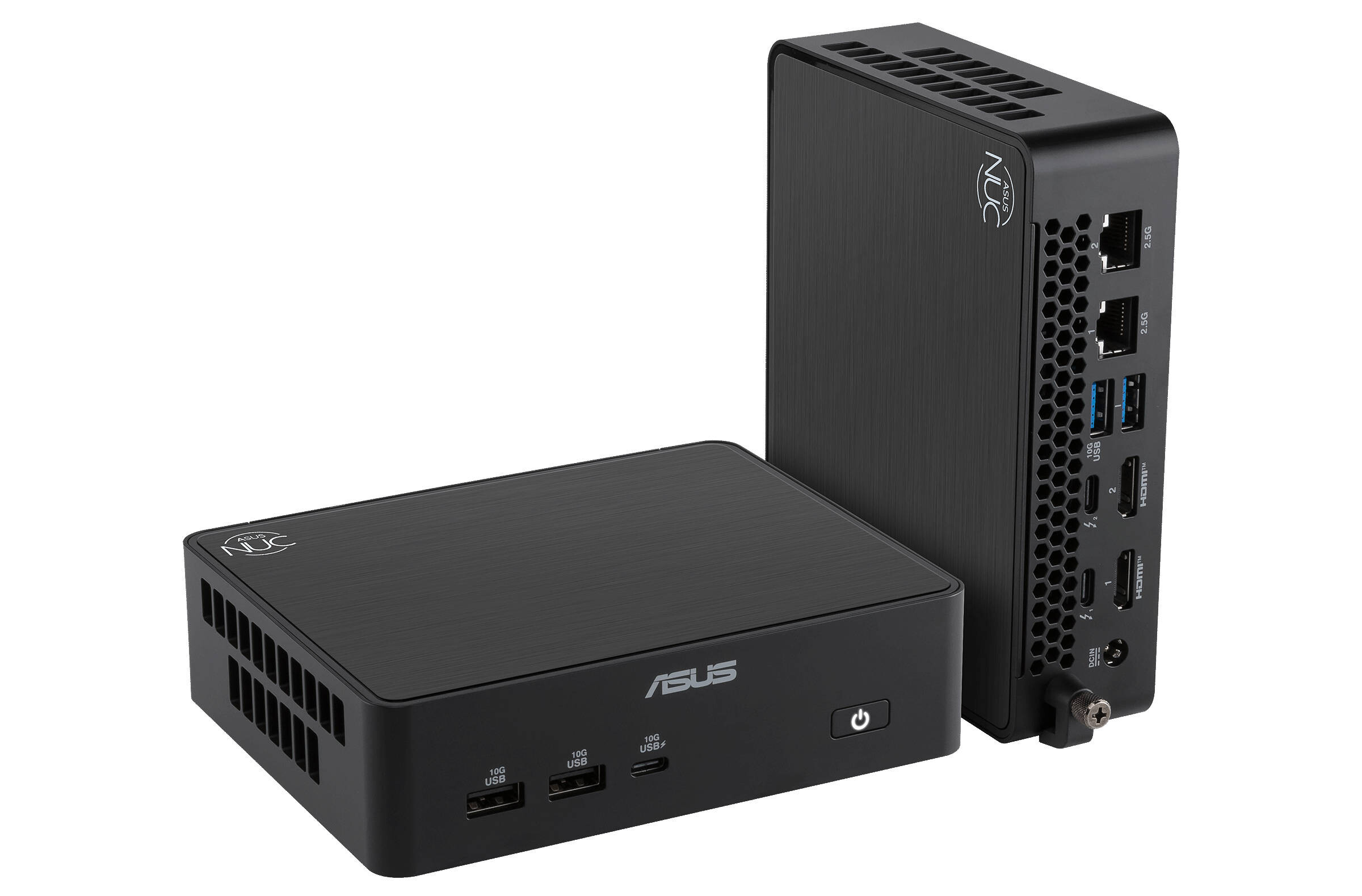

ASUS NUC 16 Pro Mini PC ReleaseASUS NUC 16 Pro Mini PC Release (Image © ASUS)

Model name Article number EUR/CHF CPU GPU Memory Memory Operating system
RNUC16GDKU5663N2 90AS00Q1-M00080 1.525 U5 325 (45W) Integrated DDR5 5600 8G*2 PCIE 512G G4 SSD W11 PRO COPILOT+PC STD
RNUC16GDKU7684N2 90AS00Q1-M002L0 1,962 U7 356H (65W) Integrated DDR5 5600 16G*2 PCIE 1TB G4 SSD W11 PRO COPILOT+PC STD
RNUC16GDKX76C4N2 90AS00Q1-M000H0 2,491 UX7 358H (65W) Intel Arc B390 LPDDR5-5600 32G PCIE 1TB G4 SSD W11 PRO COPILOT+PC PRE
RNUC16GDKW96C4N2 90AS00Q1-M002F0 2,542 UX9 378H (65W) Intel Arc B390 LPDDR5-5600 32G PCIE 1TB G4 SSD W11 PRO COPILOT+PC PRE
RNUC16GDKU560002 90AR00W2-M00080 631 U5 325 (45W) Integrated N/A N/A N/A
RNUC16GDKU760002 90AR00W2-M00090 800 U7 356H (65W) Integrated N/A N/A N/A
RNUC16GDKV560002 90AR00W2-M000C0 871 U5 335 (vPro) (45W) Integrated N/A N/A N/A
RNUC16GDKV760002 90AR00W2-M000D0 1,038 U7 366H (vPro) (65W) Integrated N/A N/A N/A
RNUC16GDKX76C002 90AR00W2-M001D0 1,674 UX7 358H (65W) Intel Arc B390 LPDDR5-5600 32G N/A N/A
RNUC16GDKW96C002 90AR00W2-M002J0 1,713 UX9 378H (65W) Intel Arc B390 LPDDR5-5600 32G N/A N/A

ASUS NUC 16 Pro prices and regional availability

The NUC 16 Pro is currently available from retailers and online channels in Germany, Austria and Switzerland. Prices for barebone configurations start at 631 EUR for entry-level CPUs, while fully populated devices cost between 1,525 EUR and 2,542 EUR depending on processor, RAM and storage specifications.
