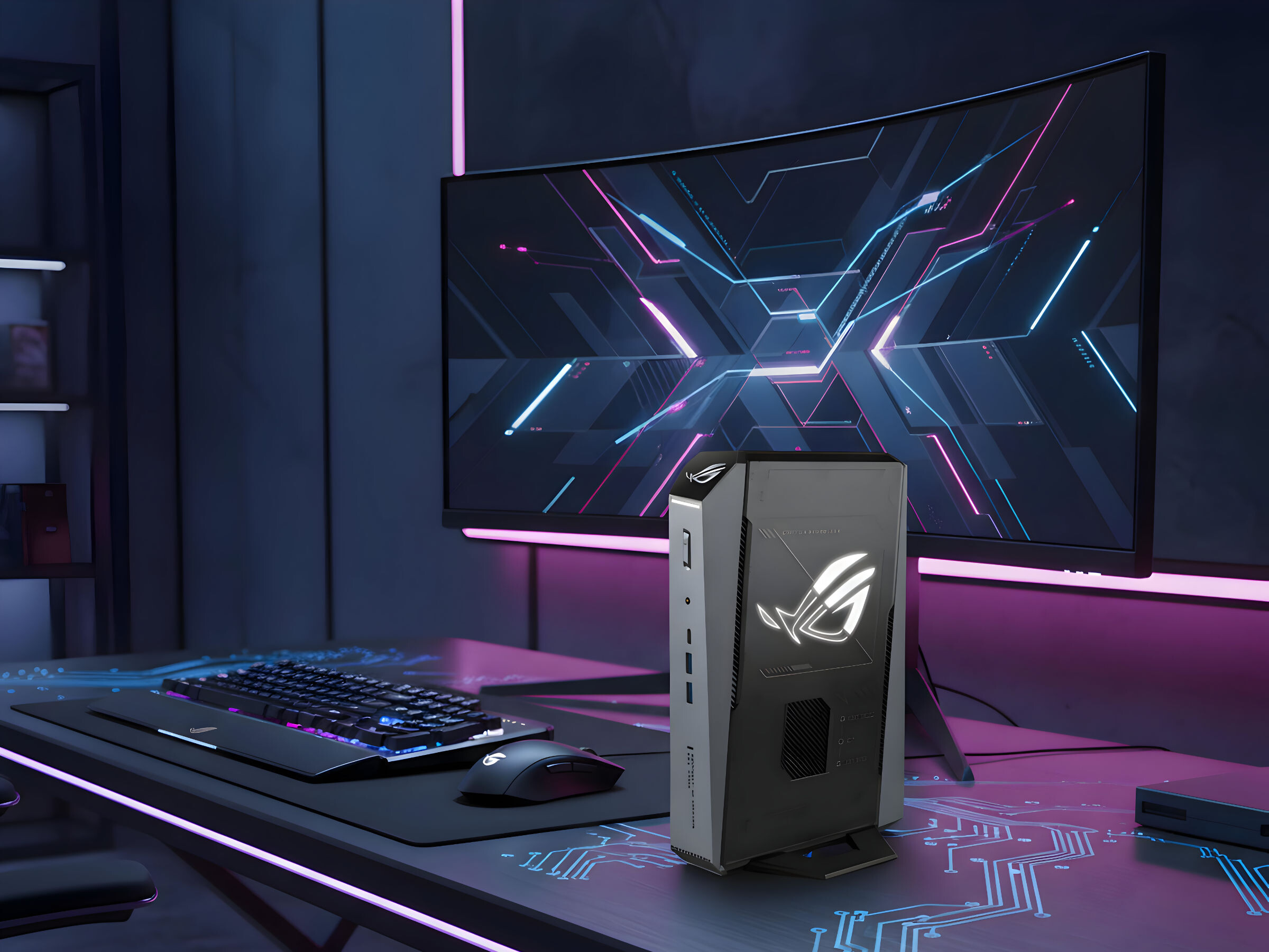

ASUS ROG GR70 Mini PC Image © ASUSASUS ROG GR70 Mini PC (Image © ASUS)

The ROG GR70 uses the AMD Ryzen 9 processor series. The top-of-the-line configuration features the Ryzen 9 9955HX3D, which is based on the Zen 5 architecture and has 16 cores and 32 threads. This specific CPU features second-generation 3D V-Cache technology to improve base and boost clock speeds compared to previous generations.

The processor is complemented by a mobile GPU from the NVIDIA GeForce RTX 50 series, available in either the RTX 5070 or RTX 5060 variant. These GPUs utilize the Blackwell architecture, which introduces more efficient ray-tracing cores and DLSS 4. The latter uses AI to generate up to three additional frames per rendered frame, which improves overall smoothness during gameplay.

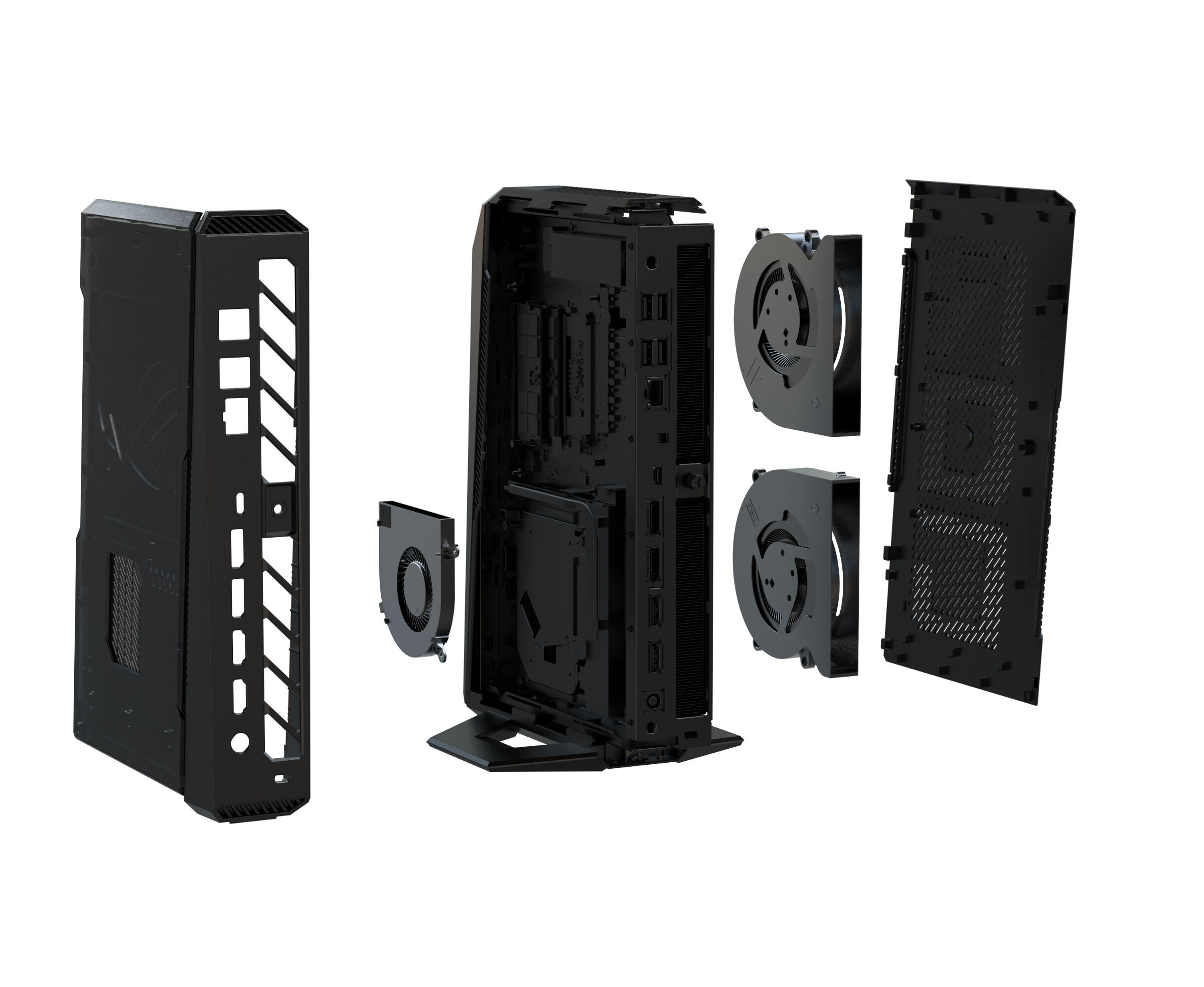

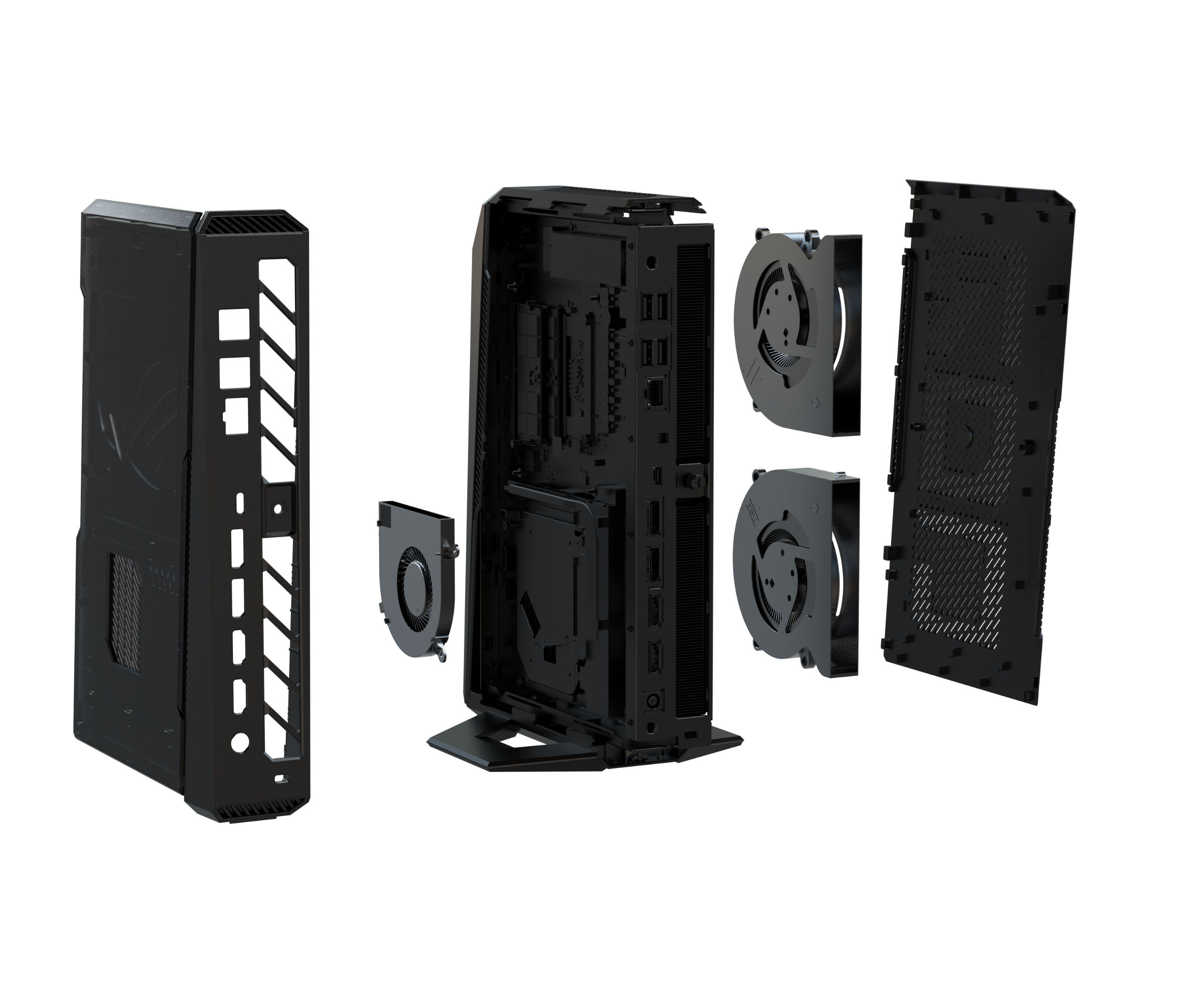

ASUS ROG GR70 AufbauASUS ROG GR70 Aufbau (Image © ASUS)

To manage the heat generated by these components in a compact chassis, ASUS has implemented the ROG QuietFlow cooling system. This configuration consists of three fans and a series of heat pipes designed to prevent thermal throttling while ensuring a low noise level. Technical specifications show that the noise level remains below 4.5 dB(A) even under heavy computational loads.

Network Integration and Interface Standards

The device features WiFi 7 technology and utilizes multi-link operation to improve stability and download speeds during large data transfers. It also includes Bluetooth 5.4 and a 2.5G Ethernet port for wired connectivity.

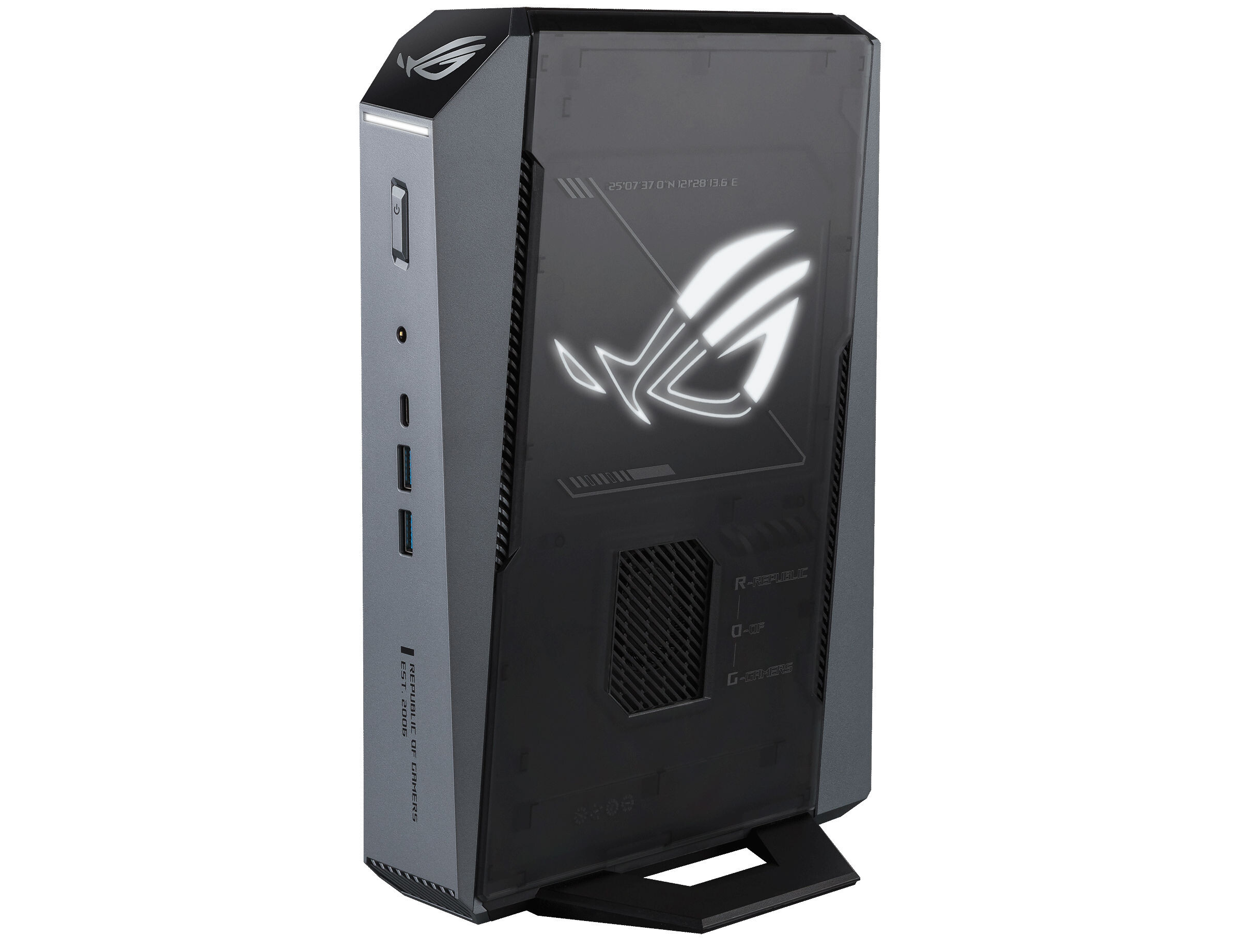

ASUS ROG GR70 DesignASUS ROG GR70 Design (Image © ASUS)

The GR70 offers eight USB ports for external peripherals. These include a high-speed USB 4 Type-C port with a transfer rate of 40 Gbit/s. The system’s display capabilities allow for the connection of up to five 4K monitors via a combination of two DisplayPort 2.1 and two HDMI 2.1 outputs.

Expandability and Software Optimization

The chassis is designed for easy access to the interior and features a tool-free opening system using a single knurled screw. Users can upgrade the memory capacity to up to 96 GB of DDR5-5600 RAM and customize storage using the Q-Latch M.2 system, which supports PCIe 5.0 NVMe SSDs.
